TR7 Series Rocker Switches |
Features: *1, 2, pole circuitry
*One hole mounting for easy installation
*Multi-circuits offered
*2 & 3 position with maintained and momentary action
*Molded-in terminal inserts
*Molded-in terminal numbers
*Captive cover screws |
Installation dimensions:
![](/en/d/file/p/2019-03-04/TR7尺寸图.jpg) |
Specifications: IP & NEMA Ratings: IP54
Service Life: Mechanically: 1 million operation
Electrically: 20,000 operation at rated loads
Operating Temperature: -46 ~ +85C (-50 ~ +185F)
Electrical Rating: 15A 125Vac, 10A 250Vac(GP), 3/4HP 125/250Vac,
20A 4-14Vdc, 15A 15-28Vdc
|
TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.
-

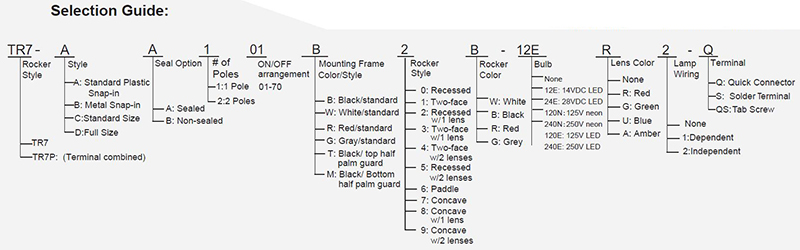

![TR7 选型.jpg](/en/d/file/p/2024-09-06/TR7 选型.jpg)
